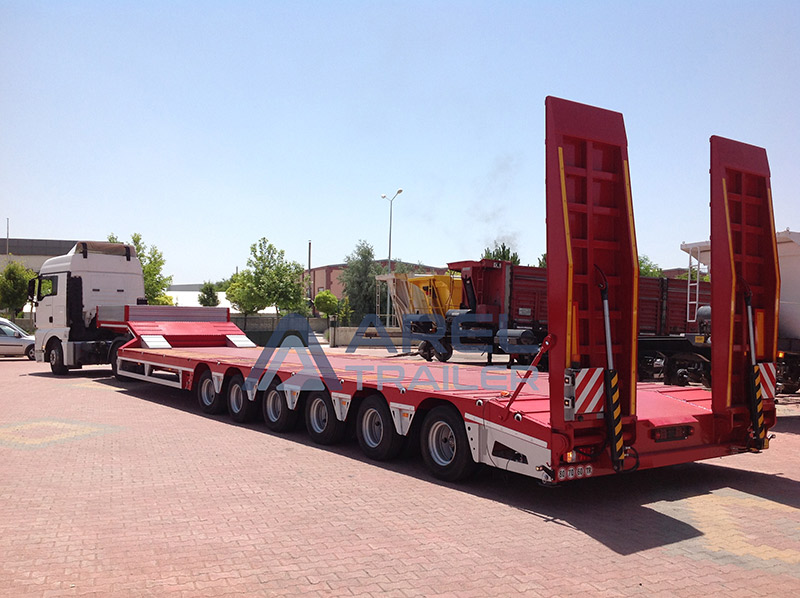

Lowbed semi trailers, 6 AXLE LOWBED TRAILER also known as lowboy trailers, are designed for transporting heavy and oversized loads that are too large or too heavy for standard trailers. They have a low ground clearance to accommodate tall loads and often feature a drop deck design to lower the center of gravity, enhancing stability during transport. Here are the typical specifications for lowbed semi trailers:
- Custom design
- Manufacturing with special size and type according to your demand
- Hydraulic steering systems ( optional )
- Self Steering axle systems Axles
- Extendable ( optional )
- Number of Axles: 2-3-4-5-6-8-BOGIE AXLE
- Axle Brand : SAF – BPW – MPD -TRAX – OSMAN KOC – RELAX
- Axle Capaicty : 12 – 14 – 16 ton
- Wheels : (245/70-17,5) (235/75-19,5) (275/70-22,5) (12 R-22,5)
- Suspension : AIR , MECHANICAL , HYDRAULIC
- External Length : 11.500 – 15.000 mm
- Platform Length : 8.000 – 12.500 mm
- Platform Width : 2.500 + 600 mm – 3.500 + 600 mm ( Width / Side Extensions )
- Platform Height : 700 mm – 1100 mm
- Extendable Platform : +3.000 mm / + 14.000 mm
- Brake systems : EBS or ABS — WABCO – KNORR BREMSE – HALDEX
- Single – Double (Foldable) hydraulic ramp systems
- Colors : Customer Request RAL Codes
- Electrical System Sa-Ba, Aspöck
